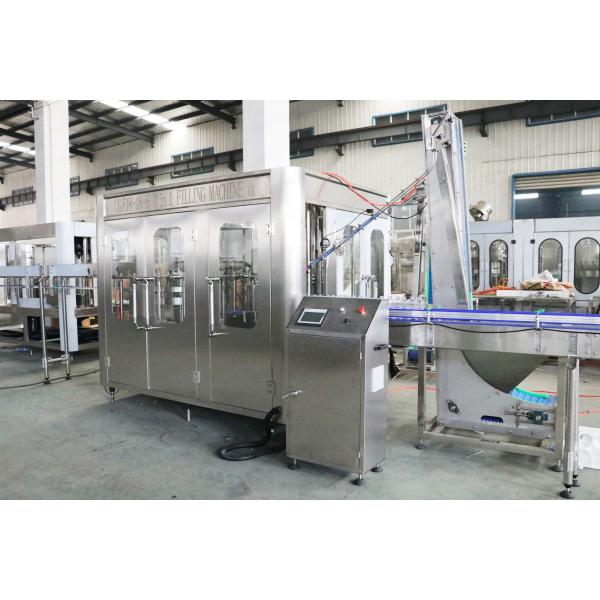

310mm Height 12000BPH Water Bottle Filling Equipment 5.2KW For Pet Bottle

Product Categories

Automatic Water Bottle Filling Machine [345]
5 Gallon Water Filling Machine [152]
Glass Bottle Filling Machine [31]
Juice Filling Machine [72]
Carbonated Drink Filling Machine [66]
Aluminum Can Filling Machine [26]
Blowing Mould Machine [22]
Reverse Osmosis Water Filtration System [22]
Shrink Sleeve Label Machine [18]
Bottle Sticker Labeling Machine [19]
OPP Labeling Machine [10]
Carton Box Packing Machine [12]
Shrink Film Wrapping Machine [13]
Date Code Printing Machine [13]

zhangjiagang aquatrin Machinery co.,ltd

Contact Now

310mm Height 12000BPH Water Bottle Filling Equipment 5.2KW For Pet Bottle

Name: 310mm Height 12000BPH Water Bottle Filling Equipment 52KW For Pet Bottle
Brand: Aquatrin
Price: 15000 USD

Quality 310mm Height 12000BPH Water Bottle Filling Equipment 5.2KW For Pet Bottle for sale

Brand Name : Aquatrin

Model Number : CGF

Certification : CE ISO

Place of Origin : China

MOQ : 1unit

Price : USD15000-60000 1Set

Payment Terms : T/T

Supply Ability : 10units per month

Delivery Time : 45days

Packaging Details : wooden package

Applicable Bottle Height : 150 mm - 310mm

Warranty of core components : 2 years

Applicable Screw Cap Height : 15 mm - 25 mm Screw Cap

Keywords : filling machine

Name : Water Bottling Machine

Contact Now

Product Description

Fully Automatic Bottled Water Filling Machine Mineral Water Bottling Machine For Pet Bottle

Auto bottled water filling machine line is used to filling mineral water or purified water into PET bottle from 200ml-2000ml.Different models can satisfy various requirement of output from 1000BPH to 36000BPH.The machine combines washing,filling and capping three function in a body, the whole process is automatic, suitable for PET bottle, plastic bottle filling mineral water and pure water.Filling way using the gravity or micro pressure filling, make the speed is faster and more stable, so with the same model our machine output is higher and more efficient.The machine adopts advanced Mitsubishi program-mable controller (PLC) to control the machine to run automatically, interworking with inverter running more stable and reliable.The photoelectric sensor detect all part running state, with high degree of automation, easy operation.

310mm Height 12000BPH Water Bottle Filling Equipment 5.2KW For Pet Bottle

Application	Mineral water and other bottled water etc.
Applied Containers	PET bottles with various capacities and shapes.
Filling System	Mechanical valve or flow-meter valve.
Capacity	1000-36000BPH.
Product's Scope	Blowing molding system, air compressor system, filling system , purification system, caps sterilization system, sterile air system, filled bottle conveying system, labelling machine, carton/film packing machine, palletizer, electric control, engineering design and construction.

Technical Parameters:

Project Name:	12000BPH Small Auto Mineral Water Plant Bottle Blowing Filling Capping Machine
Main material	Aluminum alloy, carbon steel, stainless steel, alloy steel.
Model	ZYBFC8-28-10
Working positions	Blowing 6,filling 28,capping 10
Rated capacity	12,000BPH-16000BPH (adjustable)
Bearing	High-quality homemade bearing and imported bearing(Japan and Germany); Oilless bearing: IGUS
PLC	Japan, Mitsubishi
High-pressure air valve	NORGREN, EUGEN SEITZ, SMC, etc
Muffler	NORGREN
Connecting terminal	PHOENIX, ABB
Consumption of rinsing water	1.8 t/hr
Filling Way	Gravity Filling, Volumetric Filling
Power of main motor	3KW
Installed power of motor	5.2KW

Details Images

1 - Machine Water Treatment.

1 Raw water tank + Raw water pump
2 Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter
3 Reverse Osmosis (one level)
4 UV sterilizer
5 Finished water tank + Pure water pump

1/Stainless steel high pressure film shell
 2/All kinds of capacity indicator, pressure indicator, electricity magnetic valve, balance device and pipe valve system
 3/Online type pressure auto self-protection device
 4/Online type electricity indicator (with stable compensation)
 5/System safe protecting and alarm system
 6/System frame

2 - Blow Molding Machine.

/ King Machine Blower : Industry-leading blower performance with patented control and self-regulation systems for repeatable and consistently high bottle quality
/ Production flexibility: Up to 200 different equipment size configurations from one platform
/ Top quality: Electrical stretching for bottle integrity, full material distribution control and performance
/ Fast output: Boosted uptime and speed (up to 2,400 bottles/mould/hour)
/ Efficient consumption: Up to 45 % less electricity and 35 % less compressed air

3 - CGF Water Filling Machine [ Washing Filling Capping 3 in 1 type ]

/ Enhanced food safety: Stainless steel 304/316L for all components in contact with your beverage
/ Optimum uptime: 30 % reduction in changeover and maintenance downtime
/ Sustainable solution: Reduced filler enclosure and servomotors reduce resource consumption
/ Hygiene improvement through volume control and contactless filling
/ Automatic dummy bottles: Safer, easier cleaning procedures
/ Automatic bottle changeover improves uptime

Equipment Type	Automatic
Bottle Type	PET round or square bottle Volume 200 - 2000ml Bottle diameter 50-115mm Bottle height 160-320mm
Output	up to 72,000 bph
Your product	mineral water/pure water/non-gas wine drink and so on.
Certificates	CE / SGS / ISO 9001

4 -Labeling Machine.

Boasting four carousel sizes, up to three labelling stations and 24 configurations, can generate outputs of up to 72,000 containers per hour, when standalone, at an efficiency rate of 98%.Benefits
/ Greater performance and ergonomics
/ Boasted production uptime
/ Sustainable and quality production

5 Packing Machine.

Once your beverage product has been filled and the bottle has been labelled, the primary package is gently transferred using conveyors to its secondary packaging process. The final result is the package the customer sees at the point of sale, so it needs to grab their attention. These packs ensure protection from elements such as weather, pressure and temperature changes.
 Whether you choose shrink-printed film, nested packs or wraparound cartons, King Machine packers gently feed bottles to ensure
 durable and cost-effective packs.

 Benfits.
 1 / Pack consistency and quality
 2 / Gentle and precise infeed configuration
 3 / Flexible handling of multiple SKUs
 4 / Automatic pack and raw material changeovers
 5 / Heat, glue, carton and film optimisation
